NPGS: Melted AuPd Film

Picture Menu  |  Main Menu

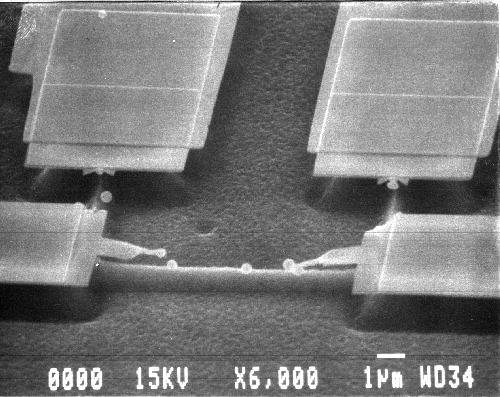

The free standing AuPd film shown in the previous image is essentially a tiny electrical fuse. This image shows what happens when too much current is run though the device, presumably from a discharge of static electricity. Notice the balls of AuPd that were formed when the device melted.
