NPGS  : Circular Grating (2)


Picture Menu  |  Main Menu

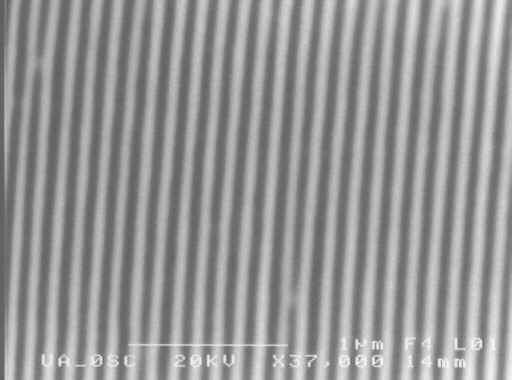

This picture shows part of a circular grating with a period of 0.15 microns. The lines appear almost straight, because they are near the outer edge of the grating where the radius is ~100 microns. The pattern was written in PMMA and has been coated with gold for viewing. The lithography was done at the Optical Sciences Center at the University of Arizona.
